Avenger Grip Head, Arm, Super Clamp, Pin & Bag

The Avenger D800KIT Grip Kit is a set of 4 grip tools that can be used all together, individually or in combination with stands to support scrims, flags, light shaping tools and lighting fixtures.

The Grip Kit consists of the C1575B Super Clamp, D200B Grip Head, D520B Grip Arm and E600 snap-in baby pin.

The C1575B Super Clamp can be clamped on to stands and AutoPoles, connects to the E600 Hex snap-in pin which can be inserted into the D200B and then you can add the D520 Grip Arm to position scrims, flags, floppies and other light shaping tools as needed.

Avenger D200B 2.5" Grip Head with 5/8in Receiver, T-Knob (Black) Features:

• Black 2.5'' grip head holds arms & light shapers on C-Stands
• Dual positioning locking T-knob for various baby pins/spigots
• Round hole diameters on grip head 6.4, 9.5, 12.7 and 16 mm
• Automotive quality brake pad discs for secure, non-slip security
• The grip head has a T-knob lock with rubberized cover

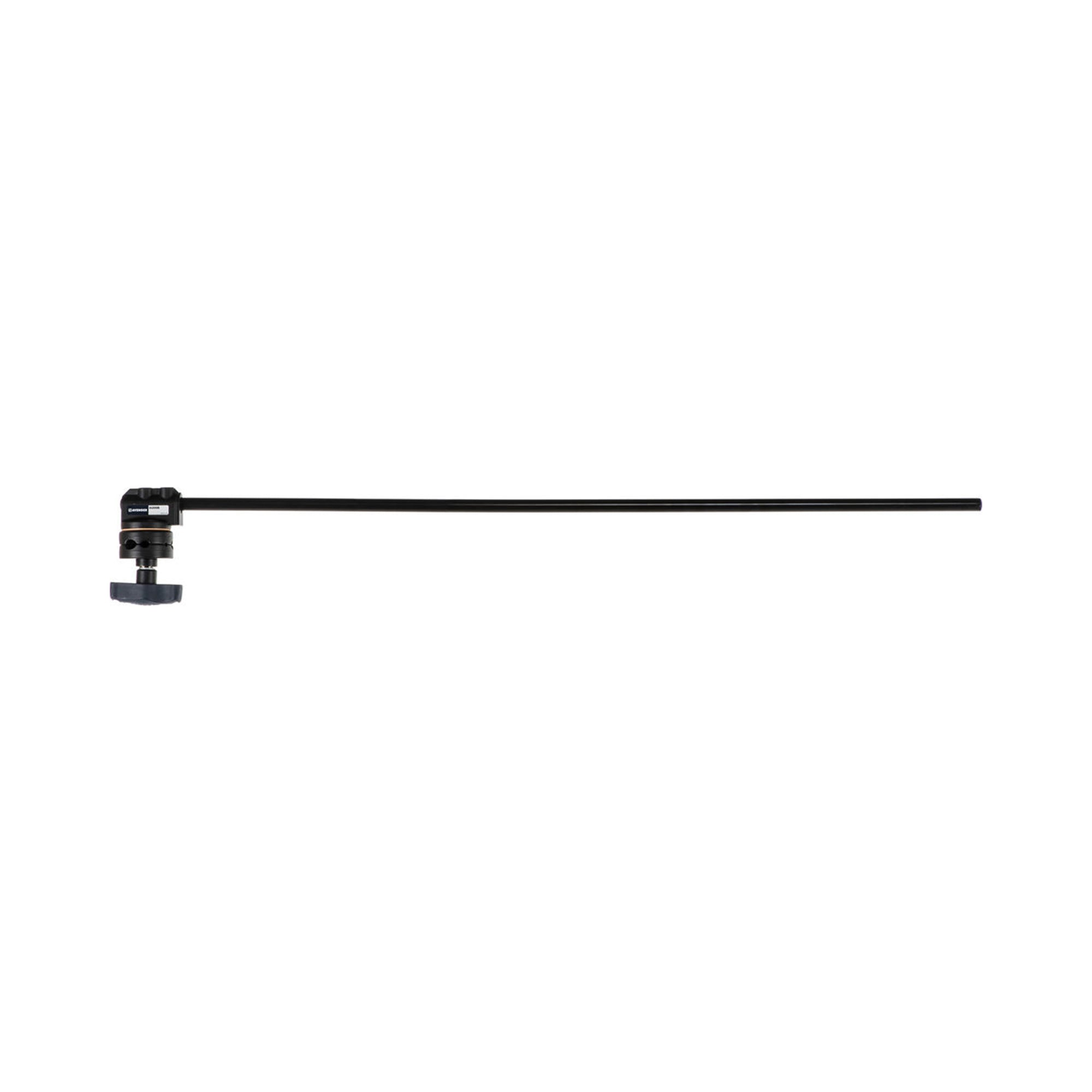

Avenger D520B 40" Extension Grip Arm (Black) Features:

The D520B 40" Black Grip Arm is one of the most popular accessories used on C-Stands and is commonly used with the D200B grip head! Grip arms are used for providing extended grip points from stands. Commonly used in cine and video shoots to hold scrims, flags and floppies these arms provide a number of uses. Photographers use these grip arms for holding lights and clamping reflectors. A must-have tool to have in your kit!

• Black chrome plated steel arm with fixed aluminum grip head
• Round hole diameters on fixed grip head 6.4, 9.5, 12.7 & 16 mm
• Automotive quality brake pad discs for secure, non-slip security
• Normally used in combination with D200B grip head & C-Stands
• Arm length is 102 cm/40''. Used with lights, scrims and flags

Avenger C1575B Super Clamp T-Knob, 0.51 to 2.17" (Black) Features:

The Avenger C1575B Super Clamp with T-Knob in black is the most versatile piece of light grip gear! Ever!! Used widely in the Cine, broadcast, entertainment, video and photo applications. The clamps capacity is up to 15 kg/33 lbs. It has a hex 16 mm/ 5/8 inch receiver capable of taking hex and round accessories and adapters. The jaws of the Super Clamp are designed for diameters Ø 13-55 mm/0.51-2.16 inches. Friction arms, Magic arms, Articulated arms and a number of hexagonal studs and pins can be used with this clamp to rig just about anything.

The metal T-Knob allows for extra solidity and torque power. This clamp includes the 035WDG (wedge) for extra clamping surface when gripping to flat surfaces. Every grip, gaffer, rigger, videographer, content creator and photographer has used a Super Clamp at least once!

Invented by Lino Manfrotto and Bottochio this famous clamp is on display in the famous MOMA of NYC. TÜV SÜD certified.

• Super Clamp jaws work on diameters from 13-55mm/ 0.51-2.16"
• TÜV/SÜD certified
• Load capacity: 15 kg/33.1 lbs., used with numerous adapters & arms
• 16 mm/ 5/8" hexagonal receiver with double safety lock
• 035WDG Wedge included for use of C1575B on Flat Surfaces

Avenger E600 Snap In Pin w/Hex End for Super Clamp, 5/8in (Silver) Features:

• 16 mm/ 5/8" hexagonal end and 16 mm/ 5/8" pin for Super Clamp
• Works great with C1575B, C1550 and 035 Super Clamps
• Aluminium alloy construction
• Works great with 014-14 and 014-38 threaded rapid adapters
• Baby pin includes a safety hole for safety or cotter pins

Avenger D800KIT Grip Kit Features:

• Kit includes D200B, D520B, C1575B, E600 and H4BAG (Grip kit bag)
• Accessories that work on their own or in combination with others
• Support scrims, flags, light shapers and light fixtures
• Attach and connect with C-Stands and other types of baby stands
• D200B & C1575B allow incredible connectivity to many accessories

Compatible With:

• Recommended Accessories (Sold Separately): A0025B, A0030CS, A0045B, 032B, 432-3.7B, A2030DCB, A2033FCB, A5033, A5029,

Product SKU:

D800KIT

In The Box:

Avenger D800KIT Grip Kit
Avenger D200B 2.5" Grip Head with 5/8in Receiver, T-Knob (Black)
Avenger D520B 40" Extension Grip Arm (Black)
Avenger C1575B Super Clamp T-Knob, 0.51 to 2.17" (Black)
Avenger E600 Snap In Pin w/Hex End for Super Clamp, 5/8in (Silver)
Avenger H4BAG Grip Kit Bag
